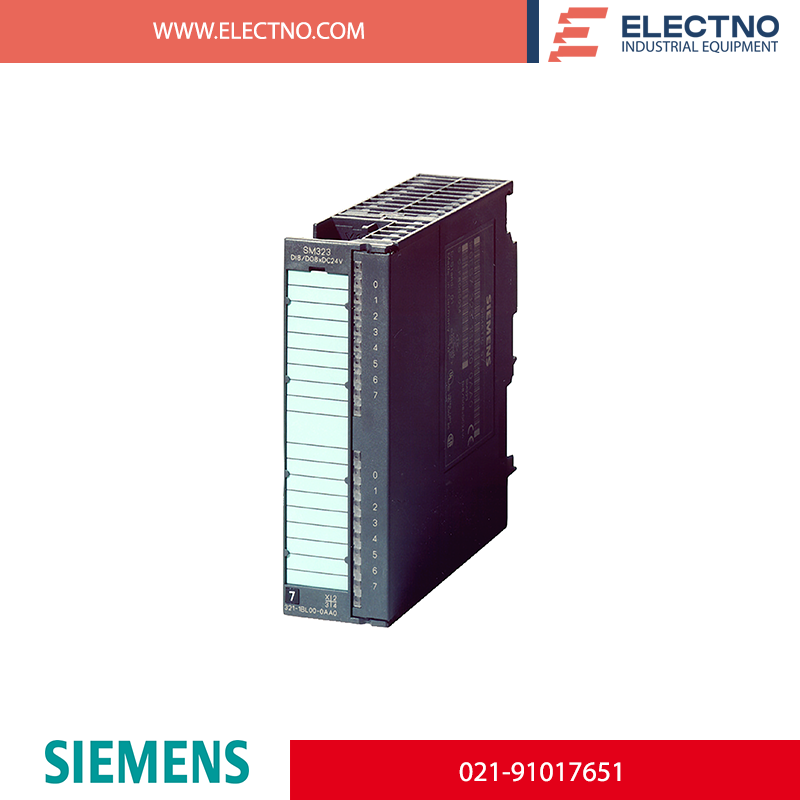

Rated value (DC) 24 V
● permissible range, lower limit (DC) 20.4 V
● permissible range, upper limit (DC) 28.8 V
from load voltage L+ (without load), max. 80 mA
from backplane bus 5 V DC, max. 80 mA
Power loss, typ. 6.5 W
Number of digital inputs 16
Input characteristic curve in accordance with IEC 61131, type 1 Yes
Number of simultaneously controllable inputs
horizontal installation
— up to 40 °C, max. 16
— up to 60 °C, max. 8
vertical installation
— up to 40 °C, max. 16
Input voltage
● Type of input voltage DC
● Rated value (DC) 24 V
● for signal “0” -30 to +5 V
● for signal “1” 13 to 30V
Input current
● for signal “1”, typ. 7 mA
Input delay (for rated value of input voltage)
for standard inputs
— at “0” to “1”, min. 1.2 ms
— at “0” to “1”, max. 4.8 ms
— at “1” to “0”, min. 1.2 ms
— at “1” to “0”, max. 4.8 ms
Cable length
● shielded, max. 1 000 m
● unshielded, max. 600 m
Digital outputs
Number of digital outputs 16
Short-circuit protection Yes
● Response threshold, typ. 1 A
Limitation of inductive shutdown voltage to L+ (-48 V)
Controlling a digital input Yes
Switching capacity of the outputs
● on lamp load, max. 5 W
Load resistance range
● lower limit 48 Ω
● upper limit 4 kΩ
Output voltage
● for signal “1”, min. L+ (-0.8 V)
Output current
● for signal “1” rated value 0.5 A
● for signal “1” permissible range, min. 5 mA
● for signal “1” permissible range, max. 0.6 A
● for signal “1” minimum load current 5 mA
● for signal “0” residual current, max. 0.5 mA
Output delay with resistive load
● “0” to “1”, max. 100 µs
● “1” to “0”, max. 500 µs
Parallel switching of two outputs
● for uprating No
● for redundant control of a load Yes; only outputs of the same group
Switching frequency
● with resistive load, max. 100 Hz
● with inductive load, max. 0.5 Hz
● on lamp load, max. 100 Hz
Total current of the outputs (per group)
horizontal installation
— up to 40 °C, max. 4 A
— up to 60 °C, max. 3 A
vertical installation
— up to 40 °C, max. 2 A
Cable length
● shielded, max. 1 000 m
● unshielded, max. 600 m
