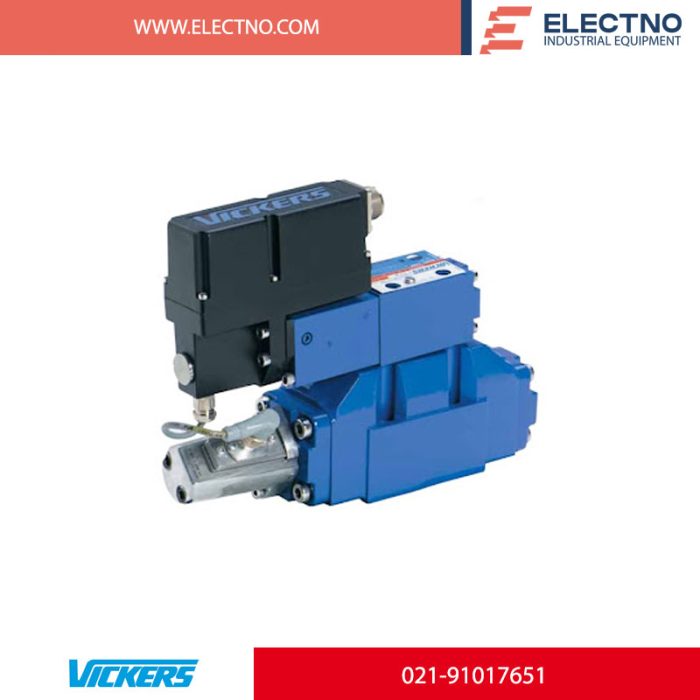

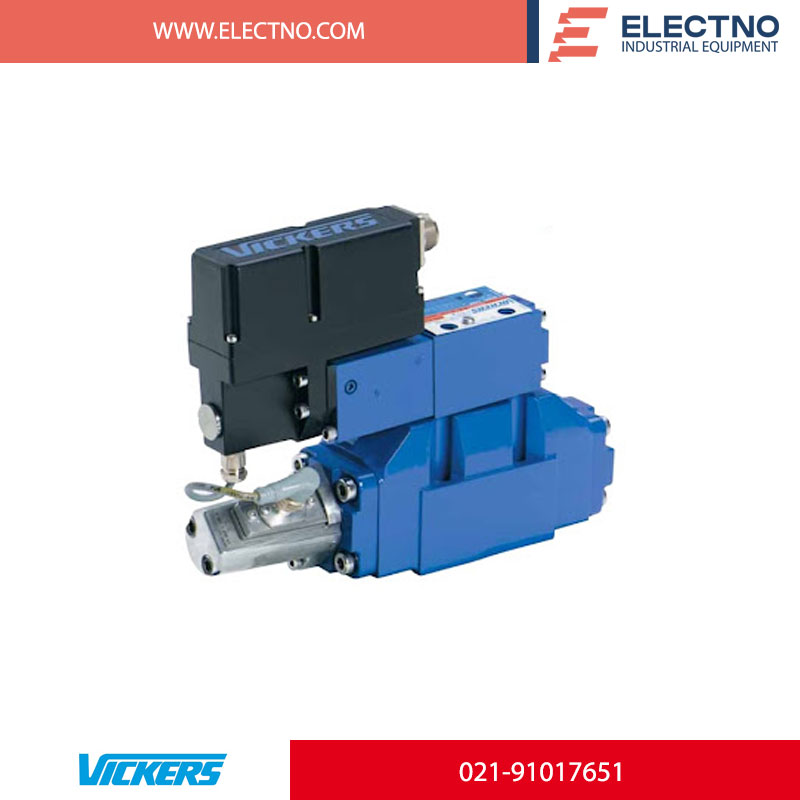

rates to 720 l/min (190 USgpm). They are designed tofor working pressures up to 350 bar (5000 psi) and flow Eaton proportional valves shown in this catalog are suitable provide a controlled oil flow in proportion to a command signal, with spool position feedback to provide accurate
. control. Zero lapped spools are available for closed loop control applications and hydrostats are available for load compensation
Features and benefits
• Factory-sealed adjustments increase
valve-to valve reproducibility .
• Valve with integrated amplifier selected, ordered,
delivered and installed as one performance
tested package .
• Electronic feedback LVDT ensures accurate spool
position control .
• Vibration and shock tested .
• Standard 24V DC supply with wide tolerance band .
• Wide range of spool and flow rate options .
• Standard ± 10V DC and 4-20mA command signals .
• Installation wiring reduced and simplified .
• Standard 7-pin connector .
• Simple valve removal and replacement for service .
• Supported by auxiliary function modules .
• Full CE electromagnetic compatibility . – 2014/30/EU
• IP65 and IP67 environmental protection rating .
• Optional valve enable function .
• Optional pilot pressure reducer .
