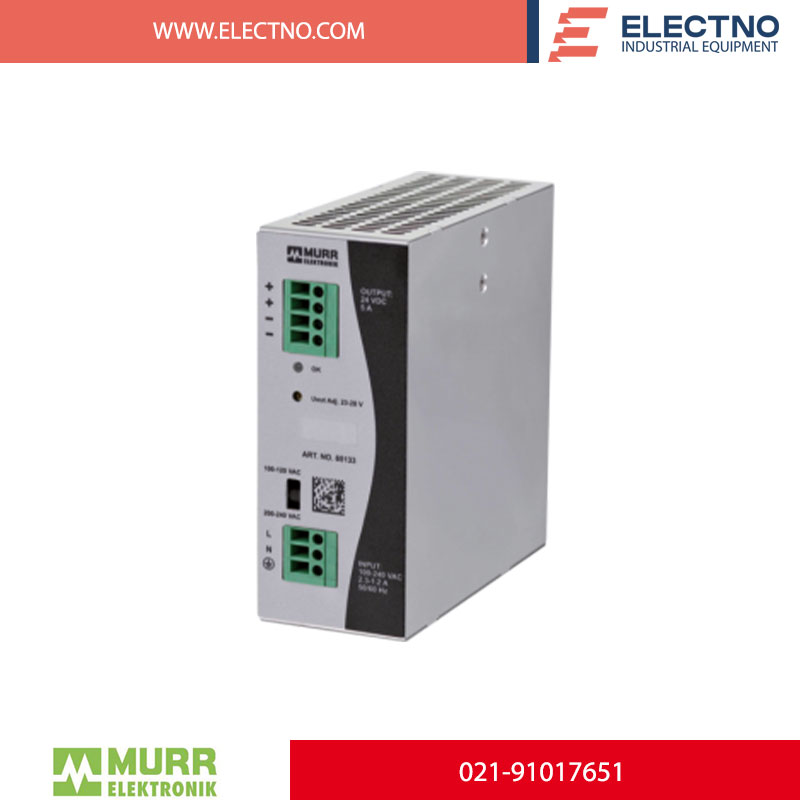

INPUT: 100…240 V AC
OUTPUT: 23…28 V DC
Current: 5 A
Mains failure bridging min.
min. 45 ms (115 V AC); min. 45 ms (230 V AC)
ELECTRICAL DATA
| Number of devices series connection max. | 2 |
|---|---|
| Parallel connection | no |
| Series connection | yes |
ELECTRICAL DATA | SUPPLY
| Power frequency | 50 … 60 Hz |
|---|
ELECTRICAL DATA | INPUT
| Fuse protection primary side internal | 5 A |
|---|---|
| Characteristic back-up fuse | Inertia |
| Input voltage 1 AC | 100 V |
| Input voltage 2 AC | 240 V |
| Input voltage AC min. | 100 V |
| Input voltage AC max. | 240 V |
| Input current at input voltage 1 AC | 2,4 A |
| Input current at input voltage 2 AC | 1,2 A |
| Inrush current max. | 20 A @ 230 V |
| Efficiency | 87 % @ 115 V AC, 88 % @ 230 V AC |
ELECTRICAL DATA | OUTPUT
| Output voltage DC | 24 V |
|---|---|
| Output voltage DC min. | 23 V |
| Output voltage DC max. | 28 V |
| Output voltage adjustable | yes |
| Output current | 5 A |
| Ripple effective max. | 10 mV |
| Spikes (s-s) max. | 50 mV |
DEVICE PROTECTION | ELECTRICAL
| Degree of protection (EN IEC 60529) | IP20 |
|---|---|
| Short-circuit protection output | yes |
| Overload protection output | yes |
MECHANICAL DATA | MOUNTING DATA
| Mounting method | geschnappt |
|---|---|
| Suitable for mounting type | Mounting rail TH35, (EN 60715) |
| Height | 125 mm |
| Width | 50 mm |
| Depth | 123 mm |
ENVIRONMENTAL CHARACTERISTICS | CLIMATIC
| Operating temperature min. | 0 °C |
|---|---|
| Operating temperature max. | 40 °C |
| Derating from | 40 °C |
| Storage temperature min. | -20 °C |
| Storage temperature max. | 85 °C |
| Relative humidity min. (operation) | 20 % |
| Relative humidity max. (operation) | 90 % no condensation |
CONFORMITY
| Product standard | IEC 61010-2-201 |
|---|---|
| EMC | EN 61000-3-2
|
