FEATURES:
●Capacity 2t to 50t
●Low porfile
●OIML C3
APPLICATION:
●Hopper scale
●Canned scale
|

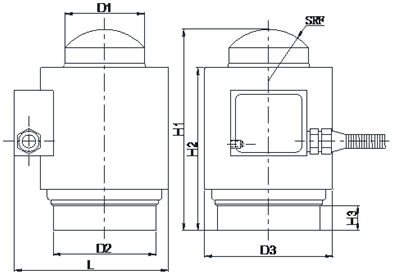

Rated capacity |
D1 |
D2 |
D3 |
F |
H1 |
H2 |
H3 |
L |
|
2,3,5 |
Ф24 |
Ф70 |
Ф88 |
15 |
138.5 |
120 |
17 |
107 |
|
10,15,20,25,30,40,50 |
Ф54 |
Ф70 |
Ф88 |
35 |
138.5 |
120 |
17 |
107 |
|
SPECIFICATION: |
|
| Rated capacity: 2ton to 50ton | Operating temperature range: -30 to +70℃ |
| Rated output:1.0±0.002mv/v | Maximum safe overload；120% OF R.C |
| Combined error：±0.05% F.S | Ultimate safe overload；150% OF R.C |
| Non-repeatability：±0.02% F.S | Recommended Excitation；10 to 12V DC |
| Non-linearity：±0.05% F.S | Maximum Excitation；15V DC |
| Hysteresis error：±0.03% F.S | Environment protection: IP67 |
| Zero balance: ±1% F.S | Input impedance: 650±10Ω |
| Creep error(30minutes): ±0.02% F.S | Output impedance: 610±3Ω |
| Temperature effect on zero: ±0.02% F.S/10℃ | Insulation resistance at 50V DC: ≥5000MΩ |
| Temperature effect on output: ±0.02% F.S/10℃ | Material: alloy steel/stainless steel |
| Compensated temperature range: -10 to +40℃ | Cable length: 14meter, diameter 6mm |
