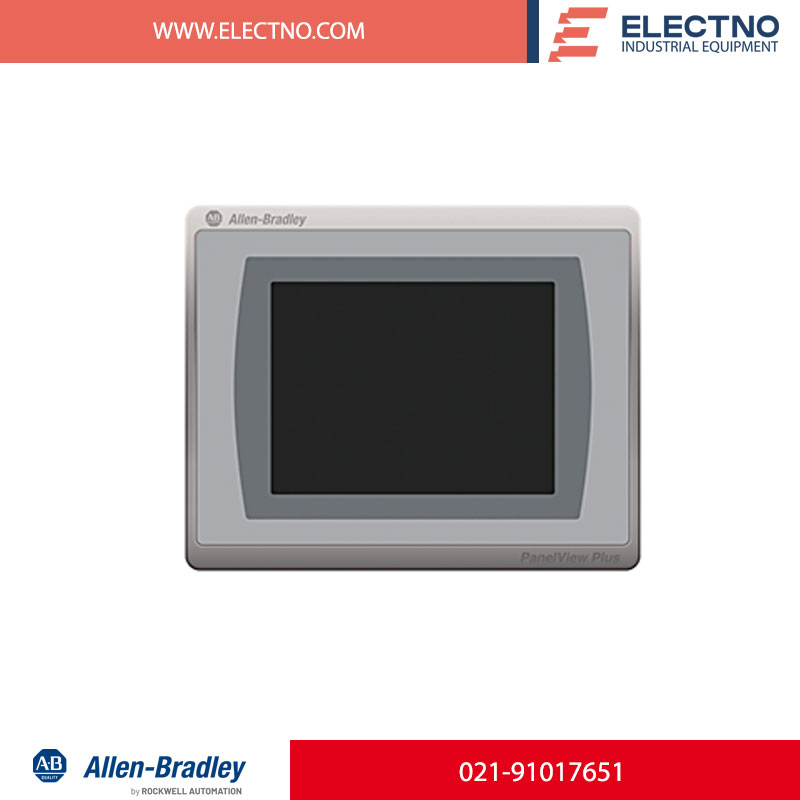

The PanelView™ Plus 7 Standard terminals are operator interface devices. They monitor and control devices that are
attached to ControlLogix® 5570 and CompactLogix™ 5370 controllers on an EtherNet/IP network. Animated graphic and
text displays provide operators a view into the operating state of a machine or process. Operators interact with the control
system by using touch screen input.
The PanelView Plus 7 Standard terminals include these features:
• Terminal functionality permits connection to 1 controller, up to 25 screens, and up to 200 alarms.
• FactoryTalk® View Machine Edition software provides a familiar environment for creating HMI applications.
• Windows CE operating system with desktop access for configuration and third-party applications.
• Ethernet communication that supports linear and star network topology.
• PDF viewer to access PDF files that are stored on the terminal.
