Series
A
Dimension
10 x 140 x 93 mm
Fork opening
120 mm
Interface
PNP normally open/normally closed (NO/NC)
Principle of operation

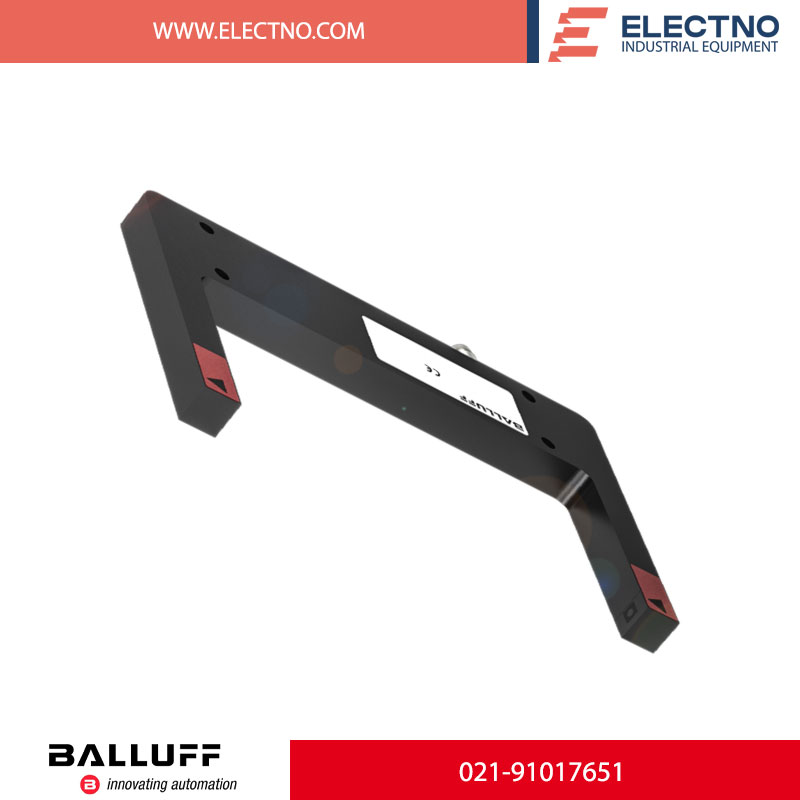

Fork sensor
Principle of optical operation
Through-beam sensor
Beam characteristic
Collimated
Light type
Laser red light
Light spot size
Ø 0.3 mm Light exit
Connection
Connector, M8x1-Male, 3-pin
Housing material
Zinc, Die casting, Painted
Material sensing surface
Glass
Operating voltage Ub
10…30 VDC
Approval/Conformity
CE
UKCA
cULus
WEEE
