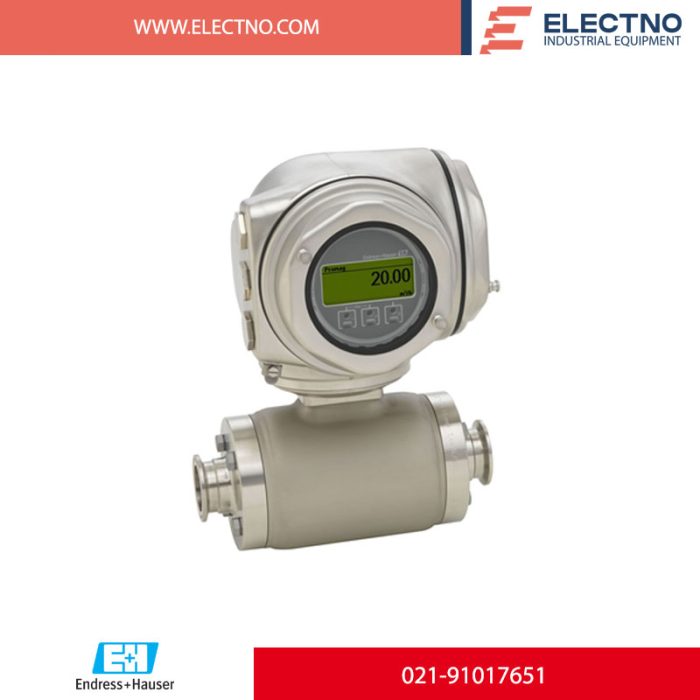

Specialist for hygienic applications with a
compact, easily accessible transmitter
Benefits:
• Flexible installation concept – numerous hygienic process connections
• Energy-saving flow measurement – no pressure loss due to crosssection
constriction
• Maintenance-free – no moving parts
• Full access to process and diagnostic information – numerous, freely
combinable I/Os and Ethernet
• Reduced complexity and variety – freely configurable I/O functionality
• Integrated verification – Heartbeat Technology
Specs at a glance
• Max. measurement error Volume flow (standard): ±0.5 % o.r.± 1
mm/s (0.04 in/s) Volume flow (option) ±0.2 % o.r. ± 2 mm/s
(0.08 in/s)
• Measuring range 0.06 dm³/min to 600 m³/h (0.015 gal/min to
2 650 gal/min)
• Medium temperature range –20 to +150 °C (–4 to +302 °F)
• Max. process pressure PN 40, Class 150, 20K
• Wetted materials Liner: PFA Electrodes: 1.4435 (316L); Alloy
C22, 2.4602 (UNS N06022); Tantalum; Platinum Process
Connections: stainless steel, 1.4404 (F316L); PVDF; PVC adhesive
sleeve Seals: O-ring seal (EPDM, FKM, Kalrez), aseptic molded
seal (EPDM, FKM, silicone) Grounding Rings: stainless steel,
1.4435 (316L); Alloy C22, 2.4602 (UNS N06022); tantalum
Field of application: Promag H is the preferred sensor for hygienic
applications with highest requirements in the food and beverage and life
sciences industries. With its compact transmitter Promag H 300 offers a
high flexibility in terms of operation and system integration: access from
